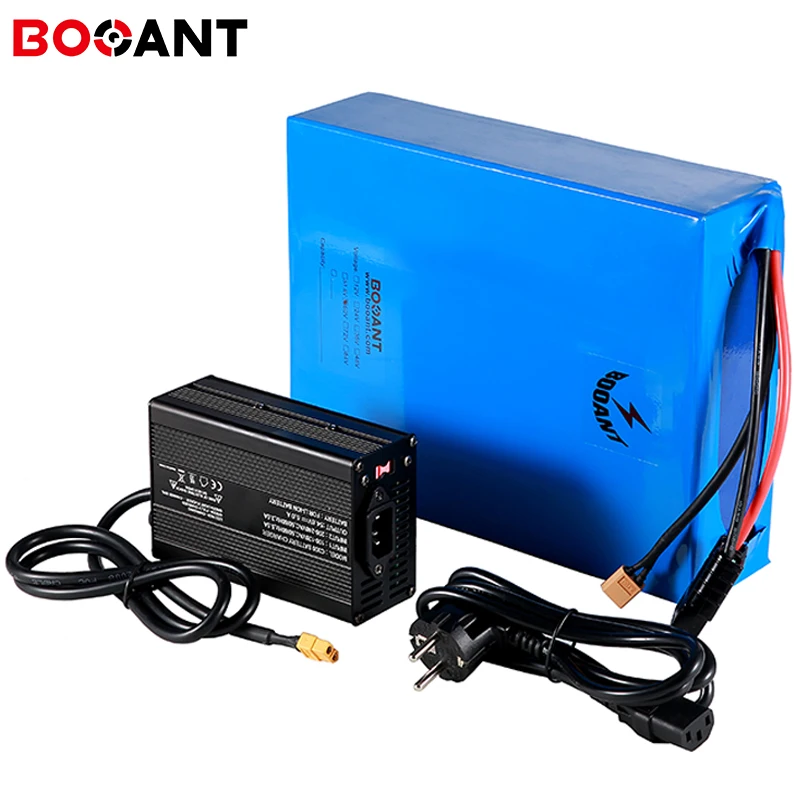

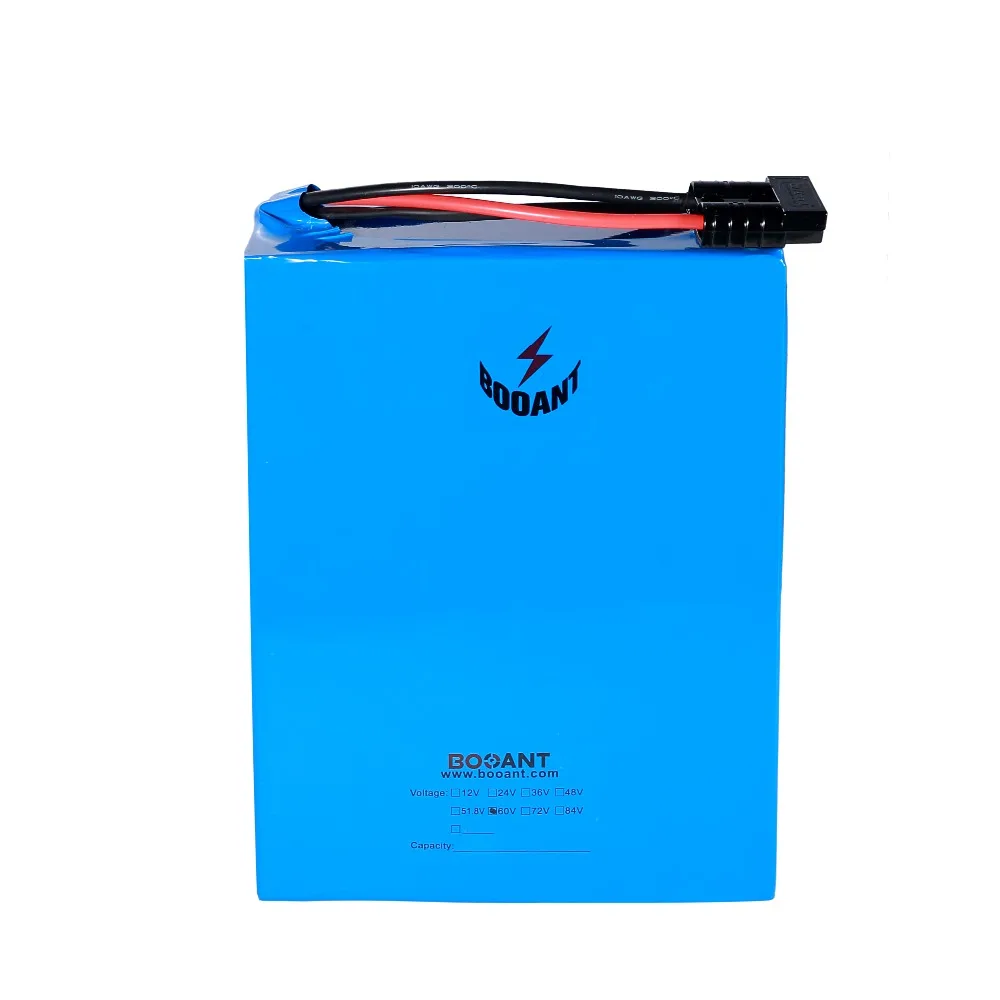

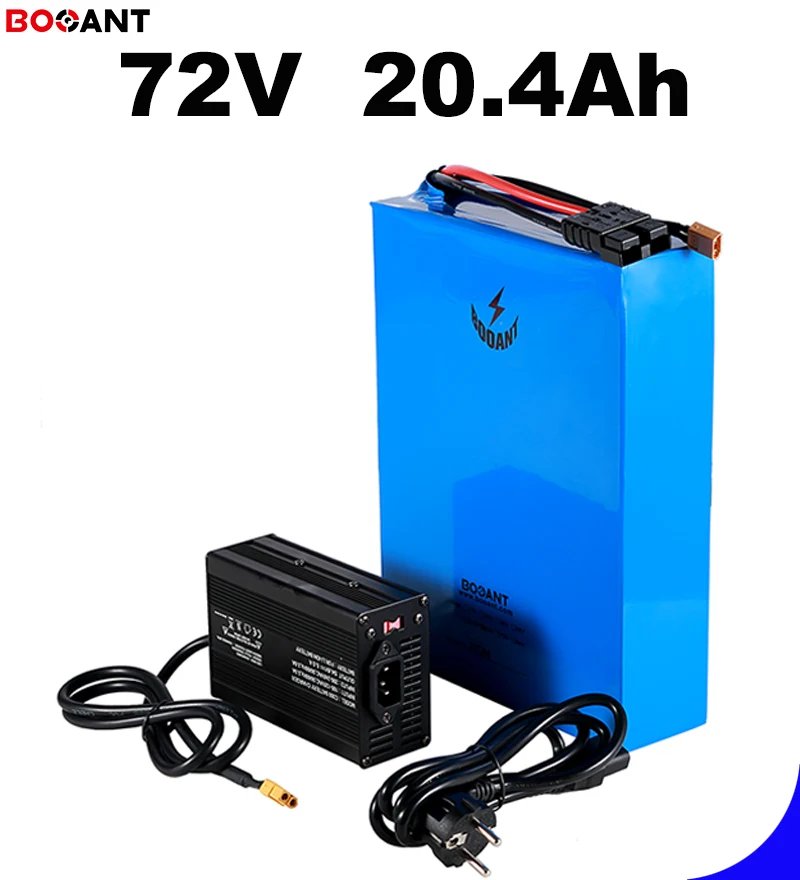

72V 60V 52V 48V 36V 20Ah 1000W 1500W lithium battery for LG 18650 cell 20S 16S 14S 72V 60V electric bike battery with 5A Charger

Type Lithium Battery

Capacity 10 - 20Ah

Brand Name BOOANT

Voltage 72v

Battery Type For Original LG 18650 3400mAh 3.7v cell

Battery capacity 20.4Ah

Battery voltage(Normal) 72V

Charger CC/CV 84v 5A

Peak current(A) 90A

Recommender for Motor 72V 100W--1800W Motor

Battery size 370*200*70mm(+/-5mm)(can be customized)

Application E-Bike / E-Scooter / Electric Bicycle

Cell Combination 20 Series with 6 Parallel

BMS(Built- in) 30A

Cell Quantity (parallel x series) 120pcs

MAX continuous discharge current (A) 30A

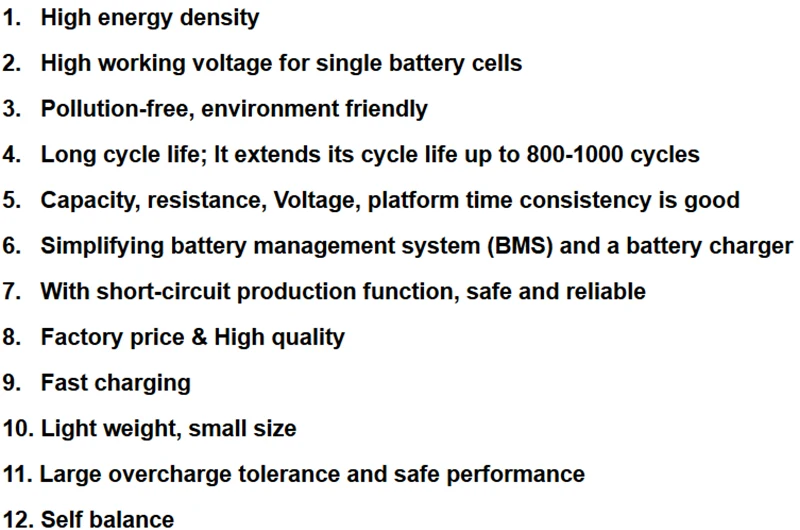

72V 60V 52V 48V 36V 20Ah 1000W 1500W lithium battery for LG 18650 cell 20S 16S 14S 72V 60V electric bike battery with 5A Charger About Battery Parameters： Fororiginal LG 18650 3400mAh3.7VCell: 10S 6P, 36V 20.4Ah 900W(Built in 30A BMS), Size: 200mm*120mm*70mm(+/-5mm) 13S 6P, 48V 20.4Ah 1200W(Built in 30A BMS), Size: 255mm*120mm*70mm(+/-5mm) 14S 6P,52V 20.4Ah 1200W(Built in 30A BMS), Size: 275mm*120mm*70mm(+/-5mm) 16S 6P, 60V 20.4Ah 1500W(Built in 30A BMS), Size: 310mm*120mm*70mm(+/-5mm) 20S 6P, 72V 20.4Ah 1800W(Built in 30A BMS), Size: 370mm*130mm*70mm(+/-5mm) About Battery Features： About Battery Cell： Parameter Information List Battery Model 72V 20.4Ah 1800W Voltage 72V Capacity 20.4Ah Cell Type For original LG 18650 3400mAh 3.7V Cell BMS (Built-in) 30A Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 84V Cell Overcharge protection Voltage 4.2V/CELL Discharge Continuous Discharge Current 30Amp(Max) Peak Discharge Current 90Amp Cell Overdischarge Voltage 3.0V/cell Discharge Cut-off Voltage 60V Cycle Life More than 800--1000 times Safety test No fires ,No explosion Over charge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight(Battery) About 6kg Size 370x130x70mm（+/-5mm）(can be customized) Fit motor power 100W--1800W(MAX) Working Temperature 0C—45C -20C---65C Retention of charge >95% Charging time 4--5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package： 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 84V/67.2V/58.8V/54.6V/42V5A Charger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) 5. Discharge Extension Cable About Discharge port： Client: We offer these discharge connector as showed on picture.You can choose which one you want,If you have not confirmed in time,we will send the productwhich our main picture showed! About the power cable： Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show： About BMS： Best-Way BMS: About our factory：
