Bafang 48V 500W BBS02B Ebike Mid Crank Drive Motor Kits E-BIKE LCD Display Electric Bike Conversion Kit P850C 500C C965 Display

Brand Name BLUENERGY

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

Bafang Motor Model MM G340.500 BBS02B

Voltage Power 48V 500W Mid Drive Motor

RPM 118-126

Max Torque 100 N.m

Weight 4.24 Kg

Waterproof Rate IP 65

Efficiency More than 80%

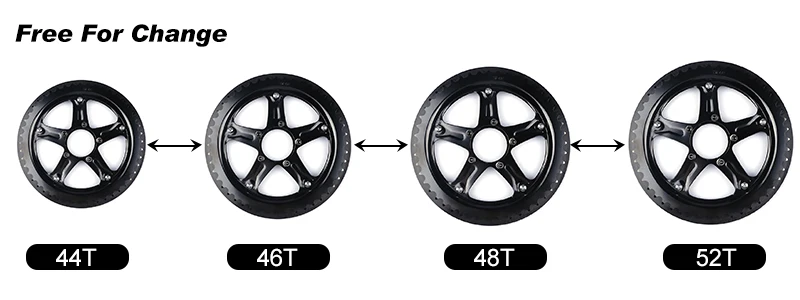

Chain Wheel Option 44T 46T 48T 52T

Controller Current Max Limit 18A

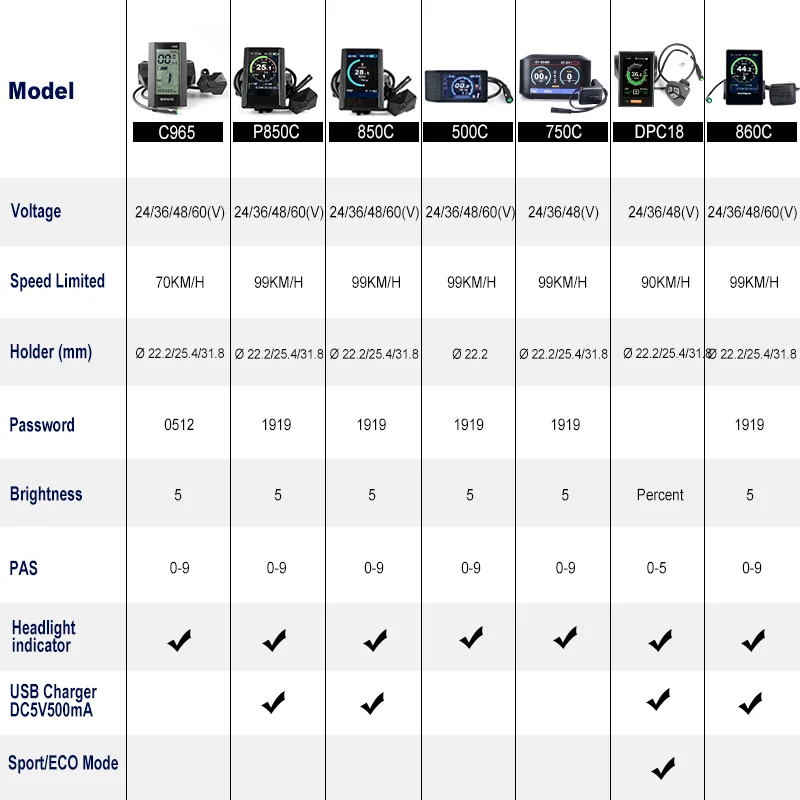

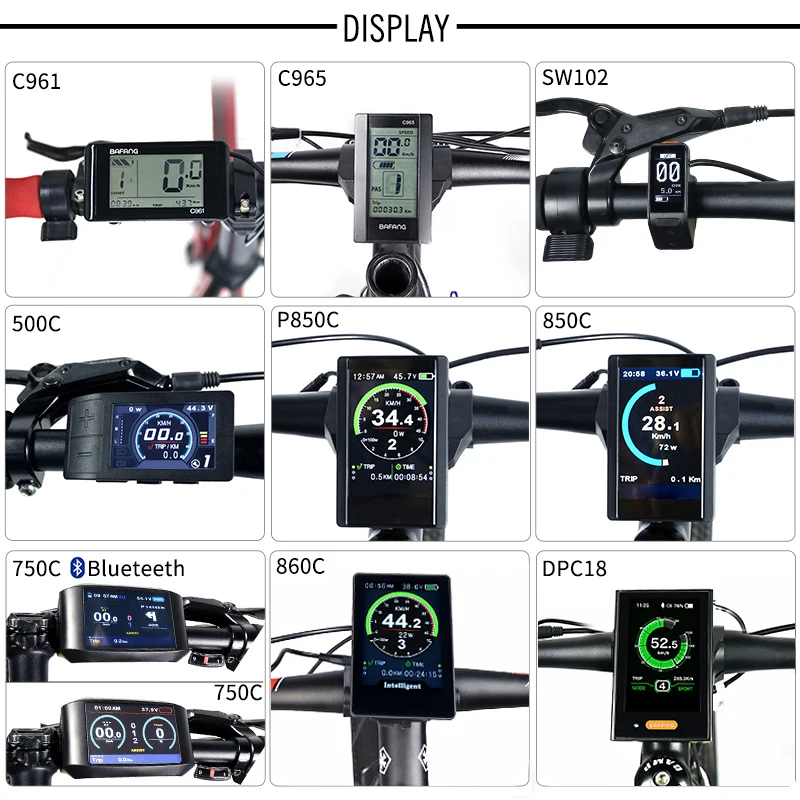

Display Option C965 C961 P850C SW102 500C 750C DPC18

Motor Warranty One Year

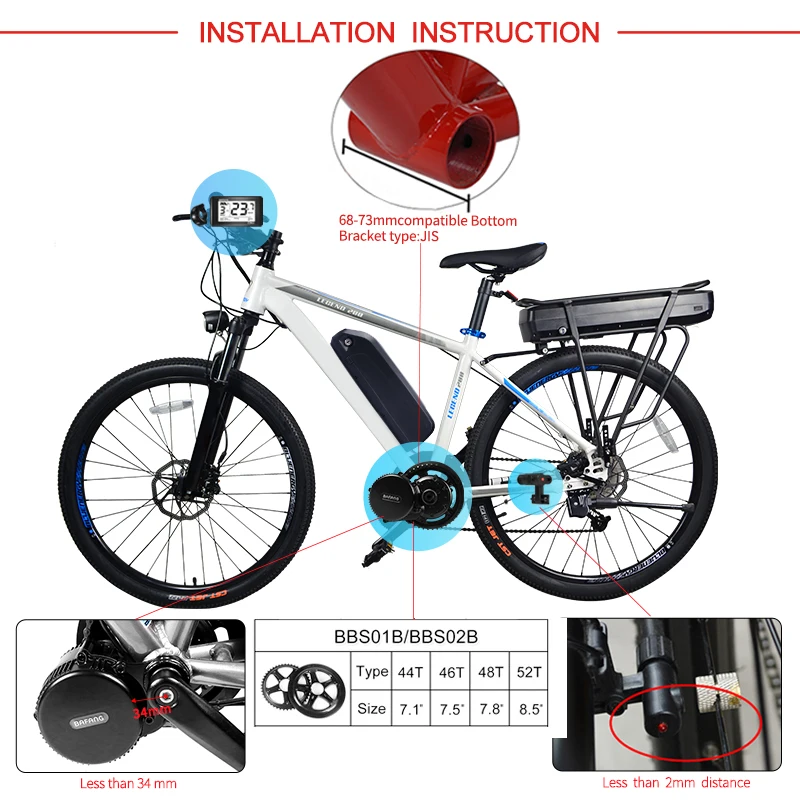

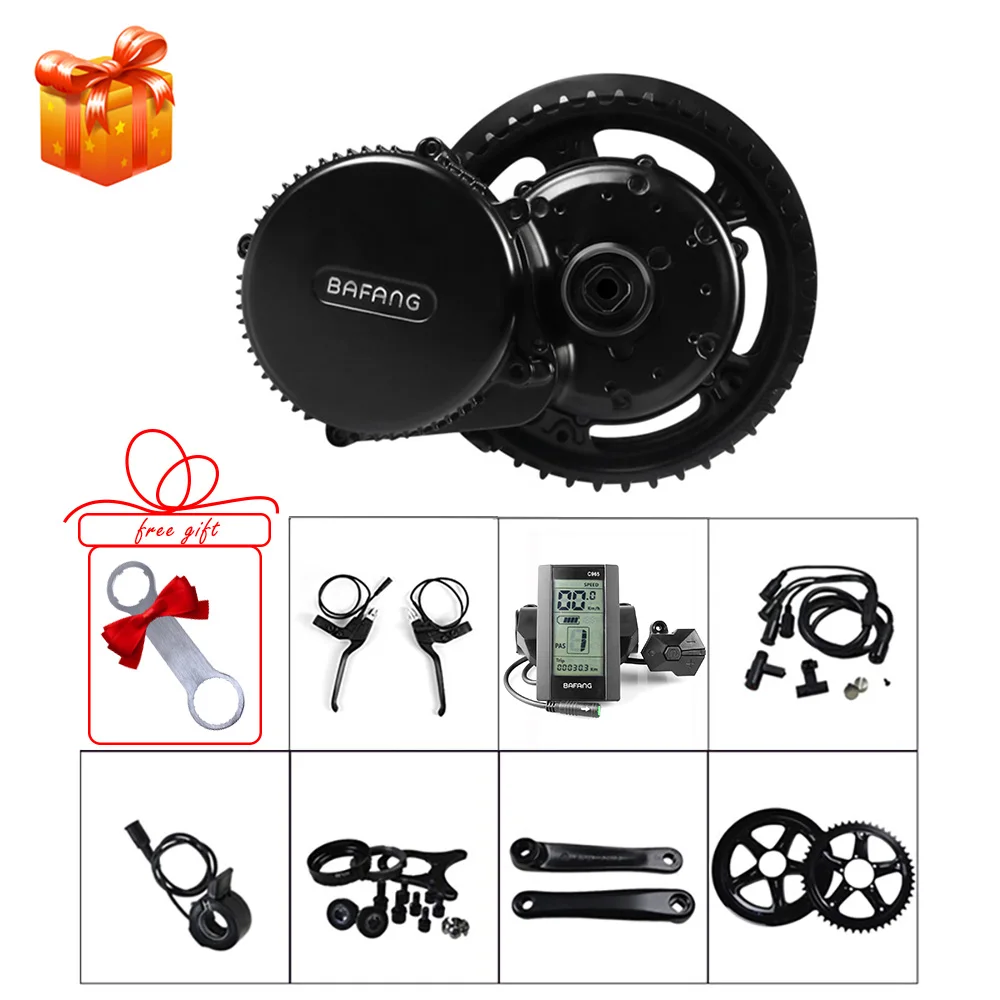

Purchase Note: This motor is fit for the Bike Bottom Brackets/BB is 68mm-73mm and the Inner Diamater of the bracket ( > 33.5mm) / should be not less than 33.5mm, please check carefully about your bicycle BB size. Motor Specification: Power:500W Voltage:48V Controller Current: 18A No Load Speed(RPM) :126 Load Speed(RPM):118 MAX Torque:100 N.m Efficiency: > 80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Display Working Temperature:-20-45C ​Packing list: BBS02B 48V 500W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Display * 1 DPC18 750C P850C C965 C961 SW102 Brake Lever * 1 Pair (We can change these to Hydraulic Brake Sensor for free,just leave me message ) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair Gifts:Install Wrench + XT60 Motor connect to Battery Cable *1 set Label Stickers * 4pcs (For EU) Gaskets * 8 Pcs For Bottom Bracket 73mm Our Service: Each E-bike display four size chain wheel can choice,but system only give us 14 options showing,if you want to change chain wheel , change brake lever to hydraulic brake sensor or need other same price gifts remark on your order or leave me message both are ok,we will very pleasure to help you. ​Our motor and Battery are one year warranty time.​ About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium Bulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia, Austria Russian Federation,US,UK: Tax Service Include Other Country:You can remark Tax requirements on your order or leave me message. ​ Recommended E-bike Accessories Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items mustbe in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kindof you to leave us 5 star feedback, if you have any problems, don`t hesitate tocontact us,we will do our best to service with you.
