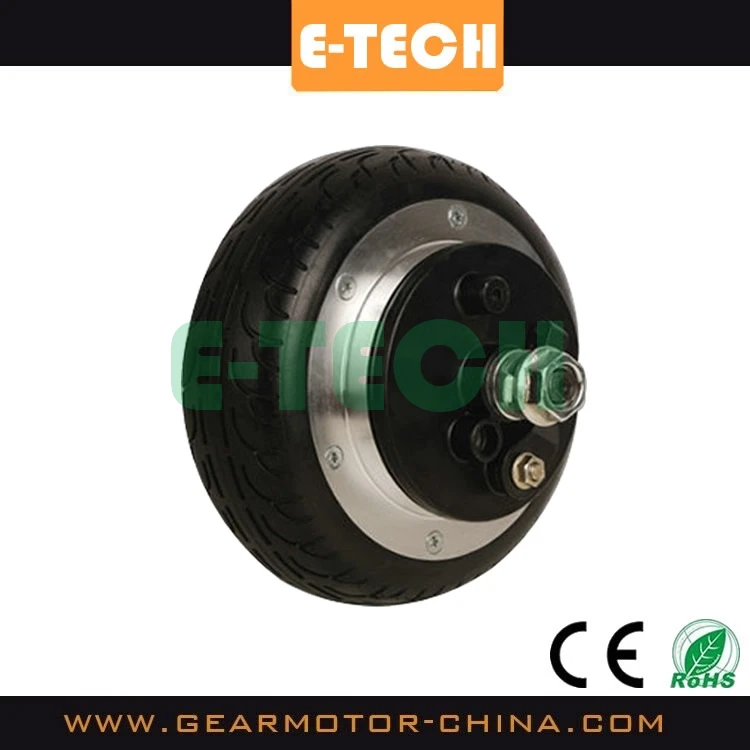

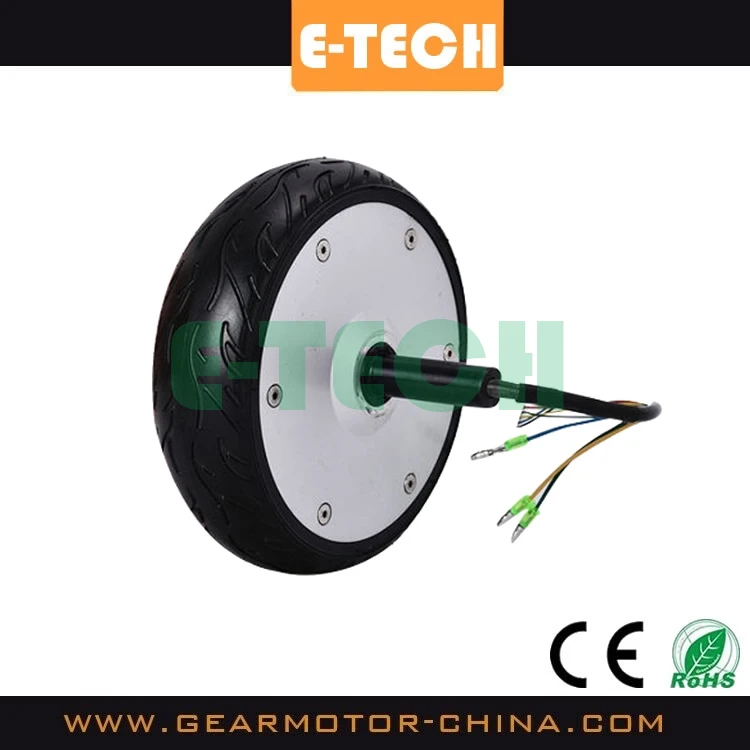

ETECH 24V 36V 48V 6 inch hub motor with ebs and solid tire

Motor Type Brushless Non-gear Hub Motor

Design Brushless

Brand Name ETECH

Wattage 301 - 400w

Voltage 24V 36V 48V

Brake type ebs

Tire inflate-free tire

Diameter with tire 170mm

No-load speed max.1600rpm

No-load current max. 1.3A

Efficiency more than 84%

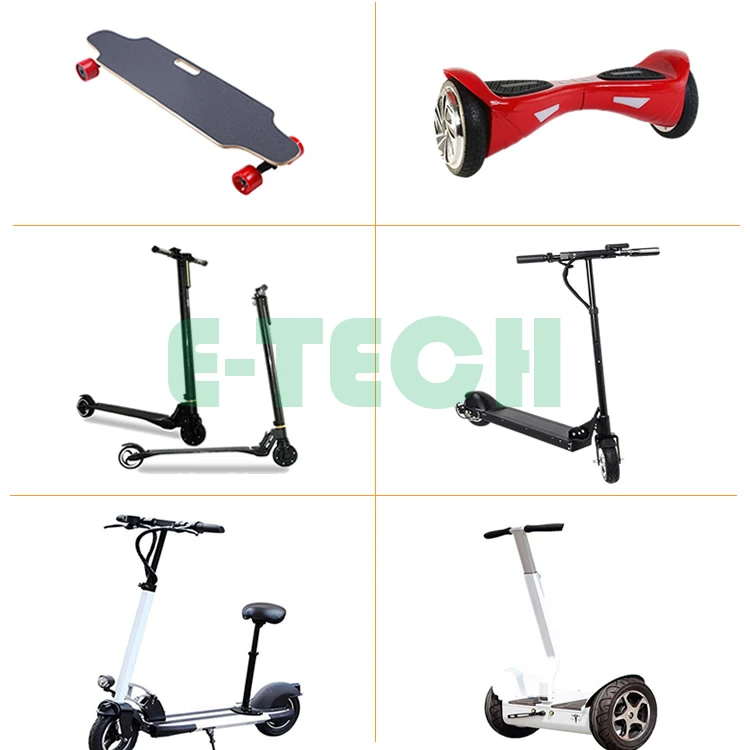

Key words hub motor, hub wheel, wheel motor, scooter motor, skate board motor

Shaft type single shaft and dual shaft

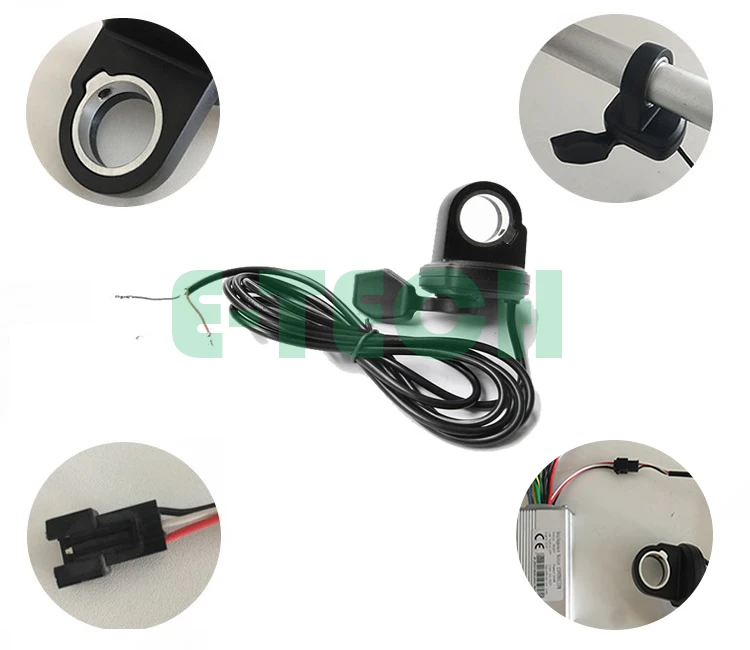

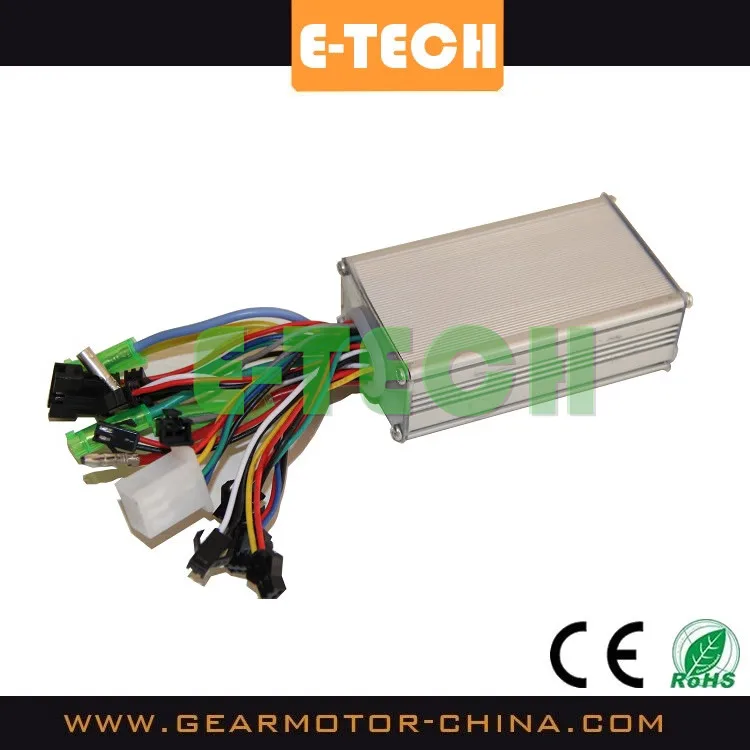

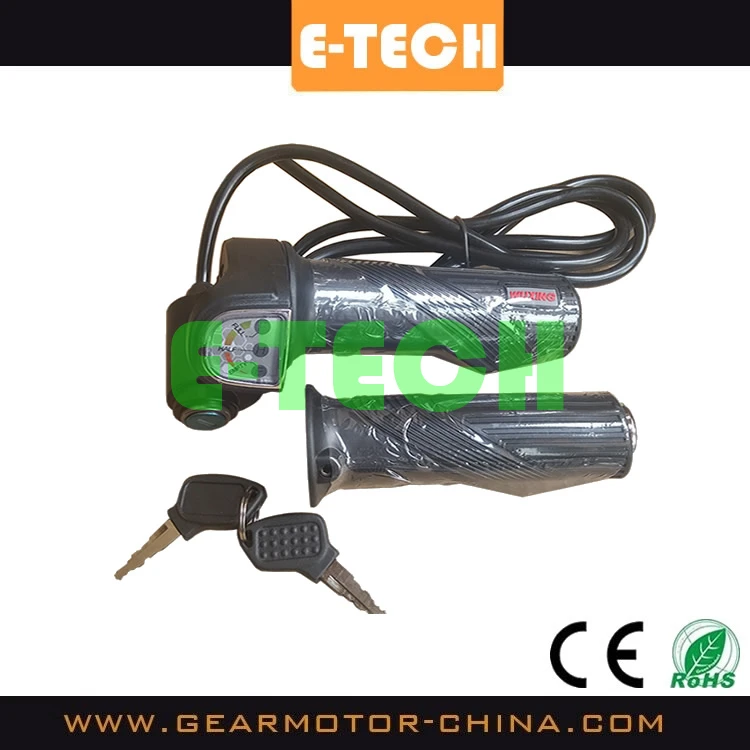

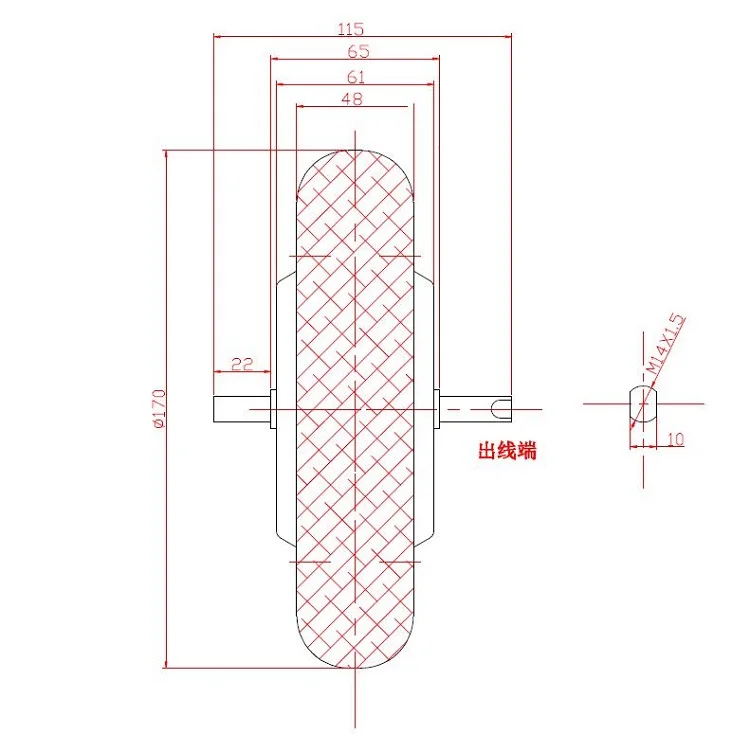

ETECH 24V 36V 48V 6 inch hub motor with ebs and solid tire Main Specifications Parameters Model Number HJ-006 Type brushless and gearless Brake EBS Tire Solid tire N.W. 3.2kg Diameter with tire 170mm Rated voltage DC 24V/36V/48V Rated power Max.400W No-load speed max. 1600rpm No-load current 0.3-1.3A Efficiency more than 84% Technical Drawing E-TECH Related Components ​Installation and Wiringof RelatedComponents (I) Controller Controller function: Speed control /LCD connector / Speed limited / PAS... Controller dimension: 9cmx5.2cmx3cm Bellowing photos show the connectiong between controlle with motor and battery ​(II) Throttle (thumb throttle /twist throttle) Thumb Throttle Thumb throttle functions: Speed adjust / Battery indicator / Power lock Thumb throttle installation: Wire length 150cm /Mounting hole diameter 22mm / Fixed andfasten by screw Bellowing pictures show the installation and wiring informaiton Twist Throttle Twist throttle function: Speed adjust/ Battery indicator / Power lock Twist throttle installation: Cable length 150cm / Mounting hole diameter 22mm/ Fixed and fasten by screw Bellowing picture shows installation and wiring information ​ (III) Brake Handle (SoftEBS Brake/ Mechanical Power-off Brake) Soft EBS Brake Handle Soft EBS brake handle function: Supply soft brake power and brake power and time can be adjust by the handle Installation: Wire length 150cm/ Mounting hole diameter 22mm / Fixed and fasten by screw Bellowing pictures show installation and wiring informations ​ Mechanical Power-off Brake Hanlde Function: Cut off power when brake / Supply mechanical brake power Installation: Wire length 150cm / Mounted and fasten by screw Bellowing picture shows installation, brake line connecting and wiring informations ​ (IV) LCD Display LCD diaplay functions: Speed information / Power / RPM / Battery indicate / 5-level speed can be chosen Installation: Wire length 150cm / Mounted by brakcet and fasten by screw About E-TECH "E-TECH" is the trademark owned by Sichuan Hongjun Science and Technology Co., Ltd.(Hongjun) who is dedicated in the design and manufacture of electric transport tools such like e-bike, e-scooters, e-car... Hongjun manufacture electric hub motors in both geared and gearless type to meet demends from different applications! Hongjun hub motors line from min.3inch to max.18inch and max. power can reach to 1000W! In order to save time and cost for customers, Hongjun also supply one-stop solutions for customers and all related components can get here at goods price such like controller, throttle, brake, battery... Please feel free to contact with us for more informations! E-TECH Work Shop E-TECH Hub Motors Applications E-TECH hub motors are widely used in skateboard, self-balance scooters, mini electric scooters, electric wheelbarrow, electric transport tools, medical equipment, robot... How to Contact US? Sichuan Hongjun Science and Technology Co., Ltd. Email:terry@gearmotor-china.com Skype: terry.hyst WhatsApp: +8615008220675 Wechat: 15008220675
